Place of Origin: | China |
Hàng hiệu: | Longer Leader |
Chứng nhận: | ISO9001, CQC |
Model Number: | LDHA-130 |
Minimum Order Quantity: | 1 set |
---|---|
Giá bán: | negotiable |
Packaging Details: | Export standard paper carton or wooden case |
Delivery Time: | 30 days |
Payment Terms: | T/T |
Supply Ability: | 30~50 sets / Month |
Product name: | Air handling unit | Installation: | Ceiling Hang/floor Installation |
---|---|---|---|
Heating Cap.: | 135Kw | Place of Origin: | China |
Warranty: | 1 year | Brand name: | Longer leader |
After-sales Service Provided: | Online support | Water flow: | 3m³/h |
Làm nổi bật: | Đơn vị xử lý không khí loại sưởi,Đơn vị xử lý không khí làm mát,Đơn vị xử lý không khí ngoài trời |

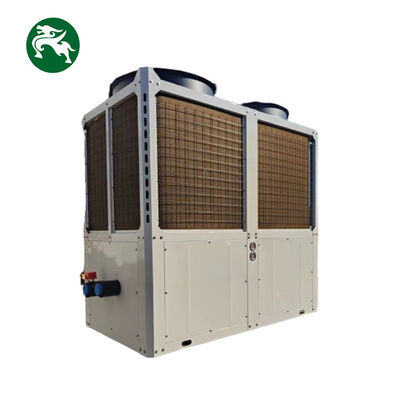

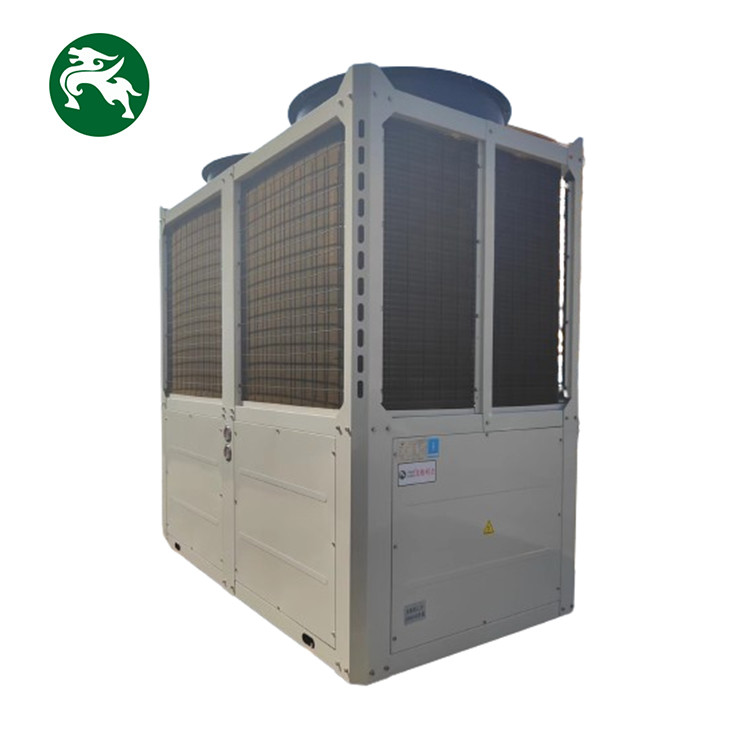

130 Air-Cooled Module Unit (Cooling And Heating Type) Outdoor Air Handling Unit
Heating Capcity | 135KW |
Water Flow | 3m³/h |
Inlet and outlet water temperature | 25℃/65℃ |
Inlet and outlet pipe diameter | DN65 |
Fan power
|
1.8KW*2 |
Fan model | φ900*2 |
refrigerant | R22 |
Reference dimensions(LxWxH) | 2240mm*1190mm*2430mm |
Longer Leader air handling unit (AHU) air flow range is from 1,000m3/h to 300,000m3/h. Available functional sections includes fresh and retuen air mixing section, cooling and heating coil section, filter, electric heating, humidifying, heat recovery, secondary air-return, fan and air diffuser section etc..
When you choose a rooftop heating and cooling system, you don't lose several square feet to cooling system installation. There's no concrete pad to pour, no landscaping disruption or cutting down the size of your outdoor living space! The unit sits atop the roof, taking up space you wouldn't otherwise use.
Are packaged units better than split one?
Efficiency - Packaged units are assembled in factories, which typically means they are more efficient than split system.
Easy installation - As packaged units are only one single units, they are easier and more versatile to install.
Robust structure
The surface of the unit is made of quality color sheet, 1.0mm and 1.5mm thickness, which can resist corrosion, scratch and ultraviolet radiation.
The panel has 2 thicknesses in 25mm and 50mm. Inside the panel, hermetically foamed polyurethane(no fluorine) with a density of 40kg/m3 is used as the heat insulating material.
Laborory, Data center, Workshop, Hospital, Pharmaceutical, Railway station, Subway, Airport,
Office, Hotel,Supermarket,Airport, Factory,Villa .
Variable speed drive (VSD) technology, explosion proof and energy saving.
